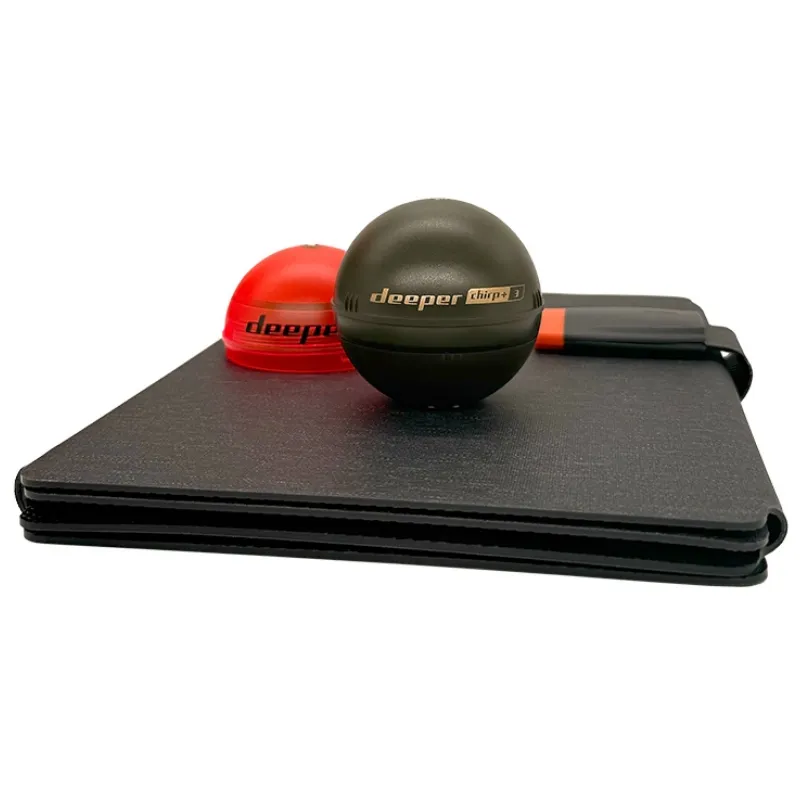

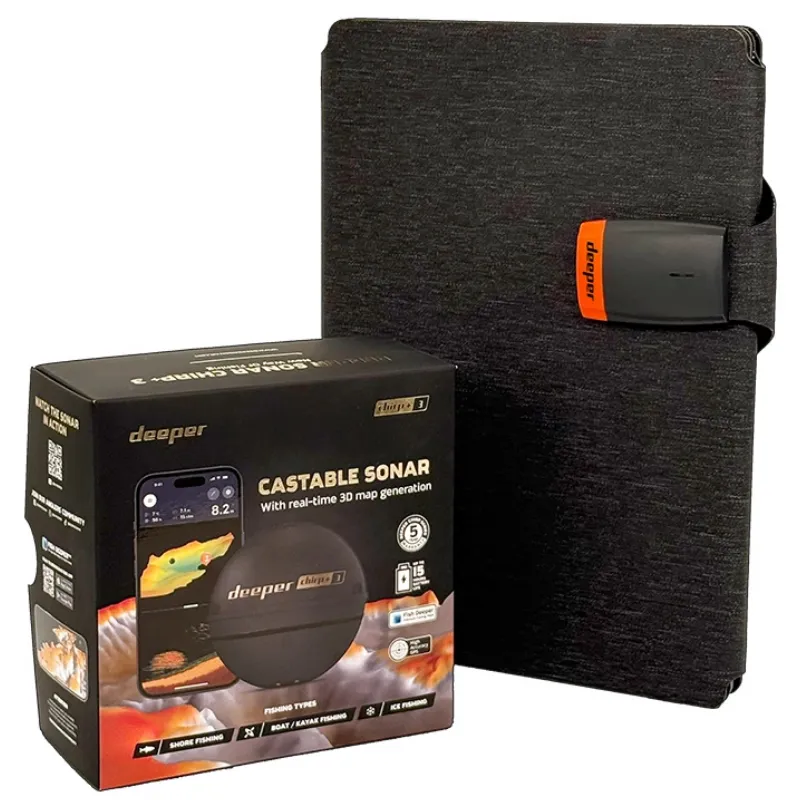

DEEPER Smart Sonar CHIRP+ 3.0 Power Bundle
Sold out
Product number:
ITGAM2595
EAN:
4779032951036
Qty/Pack:
1
Product information "DEEPER Smart Sonar CHIRP+ 3.0 Power Bundle"
- Create your own detailed lakebed maps to ensure every cast is perfect
- With 3D bathymetry bottom structure, depth, hills, slopes and other features are presented with unseen clarity
- Better clarity in shallow waters
- Higher GPS accuracy
- Analyze lakebed features/hardness, vegetation, and depth with 393 feet/100-meter range
- 15 hours of battery life
- Choose between 3 beam widths and explore the bottom structure in rarely seen clarity with whichever option suits your needs
- Narrow beam – the most sensitive option. Provides the highest level of detail about what lies beneath the surface
- Medium beam – an allrounder. Identifies bottom hardness and weed growth, the essential insights to help you understand your fishing spot better
- Wide beam – covers a wide area, which is perfect for identifying any fish activity
- Fish Deeper Application provides you with ability to check real-time weather conditions, has unlimited cloud storage for your scans and notes and grants access to 2D and 3D global fishing maps
- Includes:
- Sonar
- Night Cover
- Charging Cable
- Attachment Bolts
- Neoprene pouch

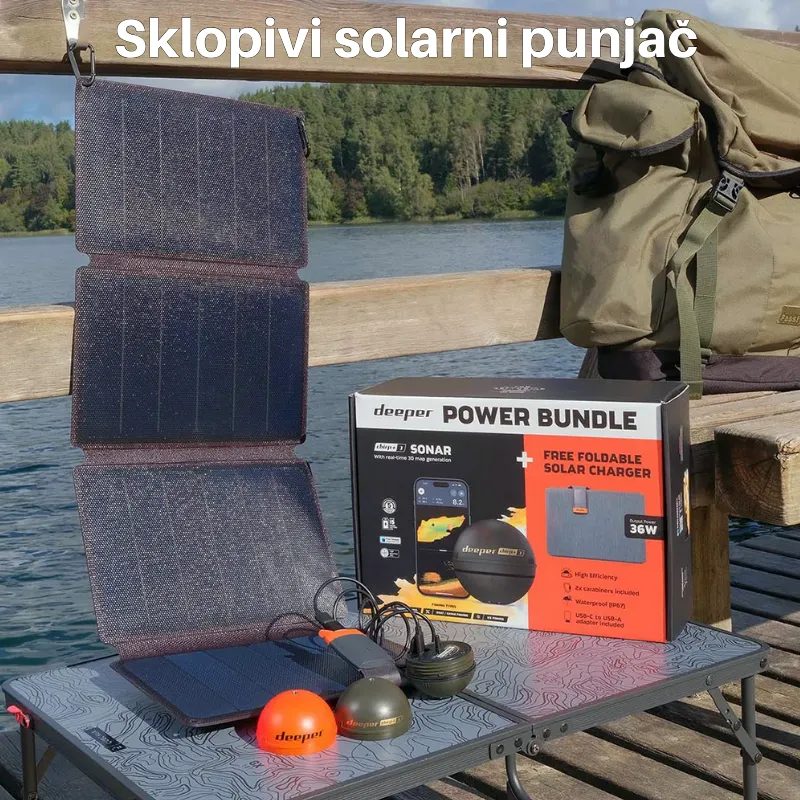

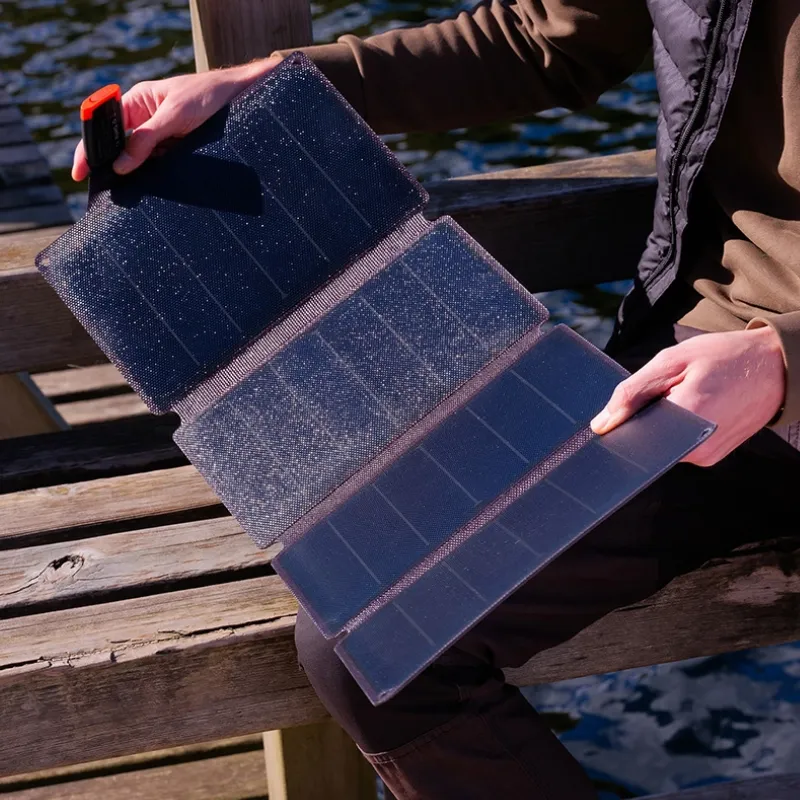

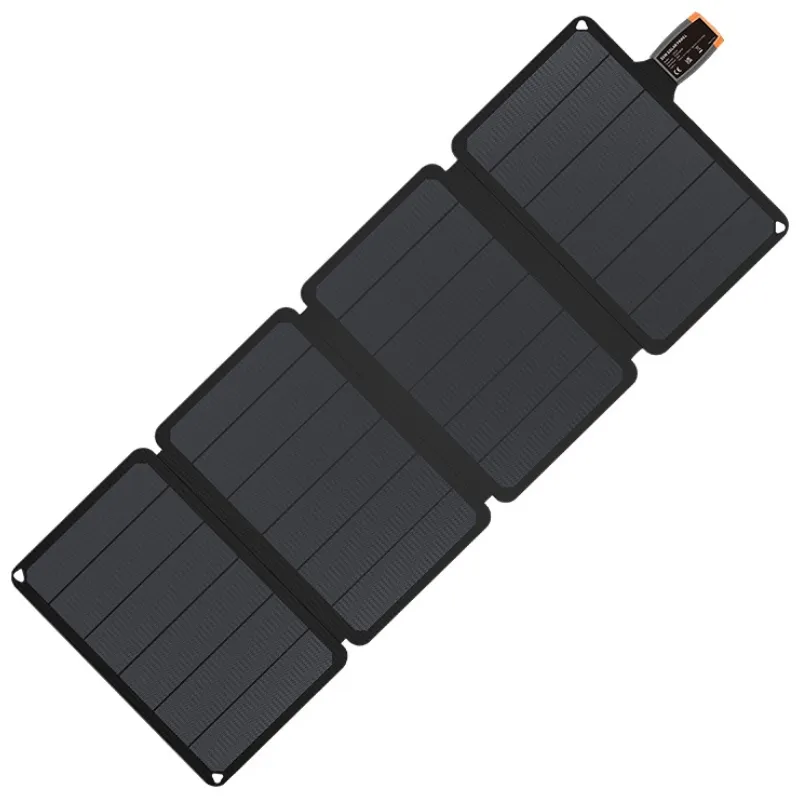

- Solar panel
- Two carabiners
- USB-C to USB-A adapter
- Tehnical specifications:
- Model: DP6H13S10
- Material: ABS
- Sonar Type: 3 beam
- Frequency (Beam Cone): 100 kHz, 47°; 240 kHz, 20°; 675 kHz, 7°
- Depth Range Max/Min: Max 330 ft / 100 m, Min 0.5 ft / 0.15 m
- Sonar Scan Rate: 15 scans per second
- Operating Temperature: -20°C to 40°C / -4°F to 104°F
- Internal Battery: Lithium Ion, 3.8V Rechargeable, 1300 mAh (typical)
- Power Supply Input (for charging battery): 5V DC; 1.5A Max
- Power Adapter (not included in the box, recommended): Input AC 110V/240V, Output USB A, 5V 2A
- Connection Range: 394 ft / 120 m (depends on OS and smartphone model)
- GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
- Product Size: 2.55 in / 6.5 cm
- Product Weight: 3.31 oz / 94 g
- Connection Type:
- Wireless Wi-Fi connection
- 802.11 b/g, 2.412GHz 1 channel
- 802.11 b max TX power +20dBm, sensitivity -89 dBm
- 802.11 g max TX power +16dBm, sensitivity -76 dBm
Properties "DEEPER Smart Sonar CHIRP+ 3.0 Power Bundle"
| Screen Size: | -- |
|---|---|
| Sonar Type: | 2D Sonar/CHIRP |
| Display Resolution: | -- |
| GPS: | Da |
| Transducer Model: | S Trostrukim Snopom |
| Bulk: | No |
| Country Of Origin: | Lithuania |
| Model Year: | 2025 |
| Warranty [Months]: | 60 |
Data according to manufacturer. Errors and changes reserved.
